Item Type:Cables, Adapters & Sockets

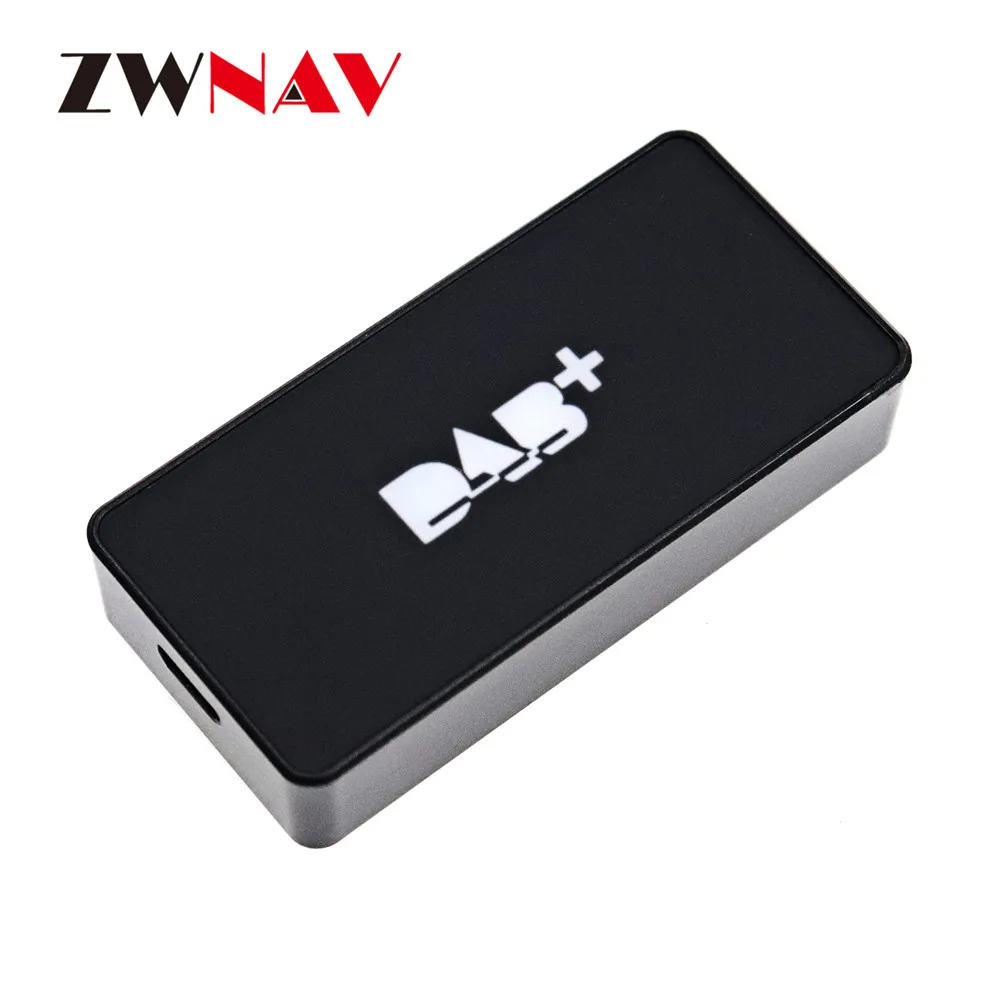

Universal DAB + Extension Antenna USB Portable Adapter Receiver For Android System Car Player
This product uses a coefficient FPC printed antenn of high conductivity and low temperature resistance as a reception antenna, so that it has a stron
1. Working Voltage: DC 5V 2. Working current: 30mA-60mA 3. Product Size(approx.): receiver: 85* 25 * 10mm, antenna length: 3m / 9.84ft 4. Rated Current: 40mA-50mA 5. Working Frequency: 170MHz-240MHz (Band III) 1452MHz-1492MHz (L-Band) 6. Output Gain: 20dB ± 2dB (BandIII) 12dB ± 3Db (L-Band) 7. Output impedance: 50 / 75Ω 8. V.S.W.R: ≤2 9. NS: ≤2dB 10. Working Temperature: -30degree Celsius ~ + 80degree Celsius 11. Storage Temperature: -40degree Celsius ~ + 90degree Celsius 12. Cable specification: 1.5DS, about 3m / 9.84ft 13. Connector: SMA Plug
Plug and play, lossless installation for stronger signal gain. The car will not be affected when adjusting the driving signal.
1. Firstly confirm whether their car DVD / one player is of Android 4.4 above system. 2. Download the link below the APP, and install on the car player (just download it from either of the two links) 3. Install the DAB + antenna to the car windshield, and connect the DAB + receiver.
1 * DAB + antenna 1 * DAB + signal receiver
